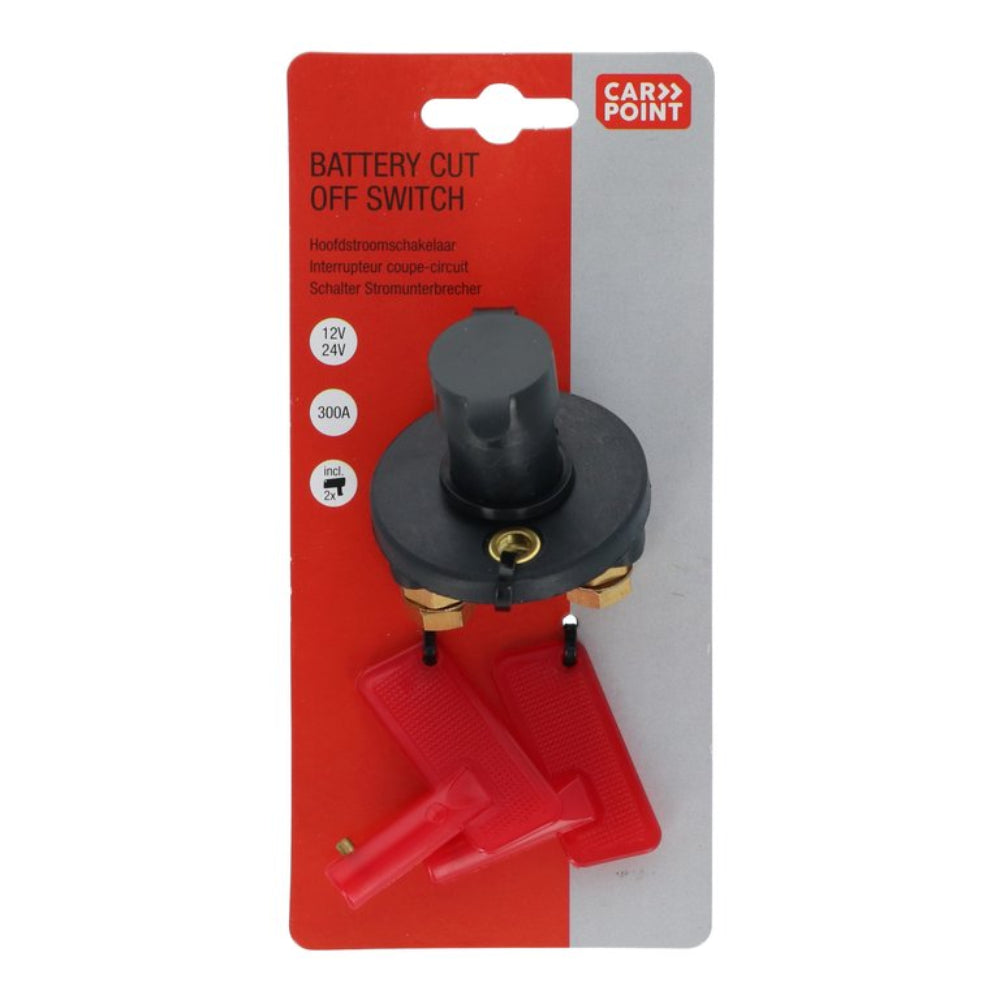

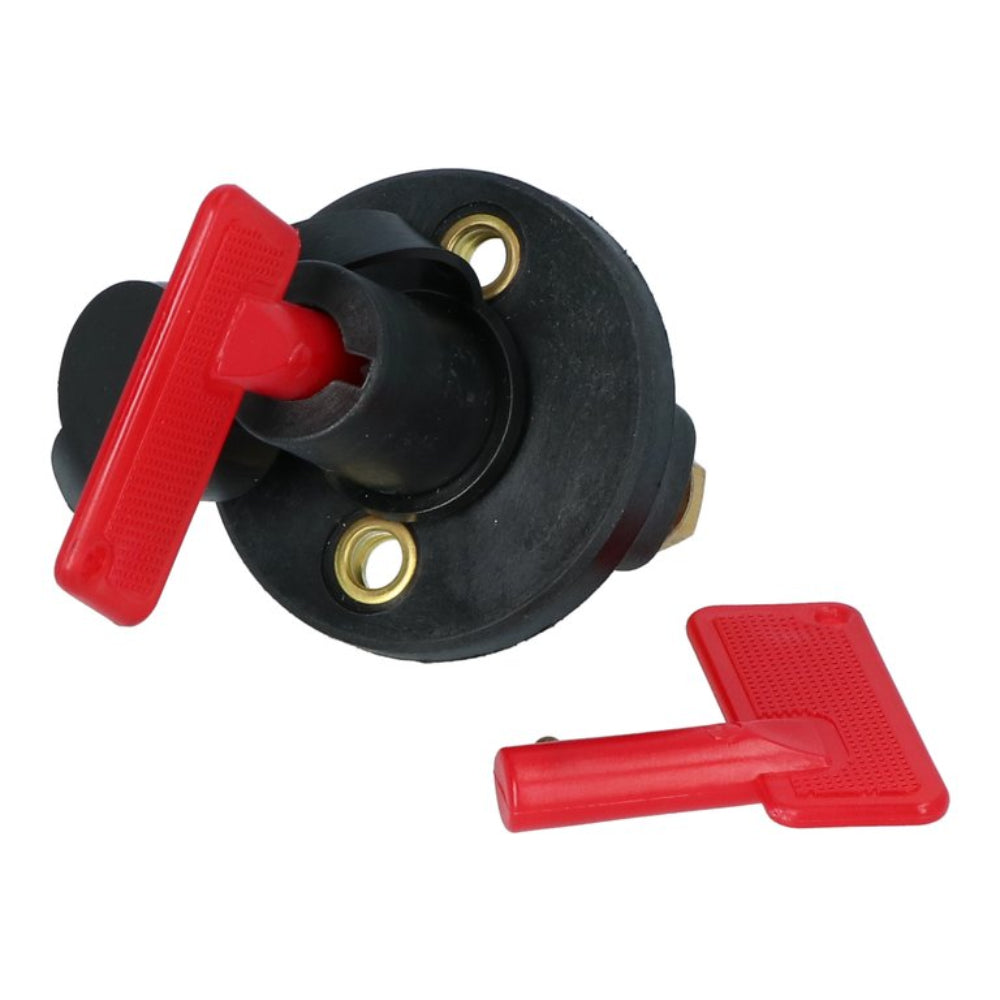

Carpoint battery master switch

The Carpoint battery isolator helps prevent battery drain when the vehicle is not used for longer periods. It can also be used as an emergency cut-off switch and provides added protection against unauthorised use of the vehicle.

This battery disconnect switch is suitable for 6 V, 12 V and 24 V systems and supports a maximum load of up to 300 A. Supplied with two keys, it lets you quickly and easily connect or disconnect the power supply from the battery.

Battery Isolator for 6–24 V

• Suitable for 6 V, 12 V and 24 V

• Maximum load: 300 A

• Helps prevent battery drain during extended periods of inactivity

• Can be used as an emergency cut-off switch

• Can help protect the vehicle against unauthorised use

• Supplied with 2 keys

• Height without key: 72 mm

• Height with key: 100 mm

• Mounting plate diameter: 58 mm

• Mounting hole diameter: 7 mm

• Distance between mounting holes: 36 mm

• Distance between the two mounting points: 32 mm

• 24-month warranty

Specifications

Brand: Carpoint
Product type: Battery isolator
Quantity: 1 pc.
Blade sizes: Not applicable
Material: Synthetic material and mixed materials
Colour: Black / red
EAN: 8711293491322
